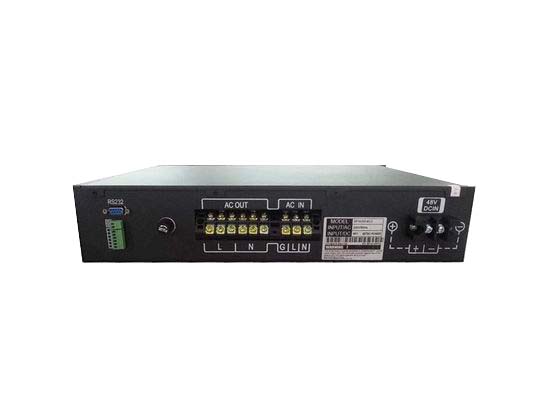

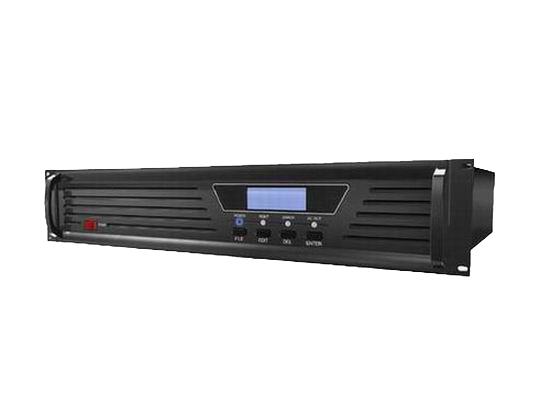

T Series 1kVA to 3kVA Telecom Inverter
Product Details
Key features:
T series pure sine wave inverter/power inverter/inverter power supply is a new device which can invert the DC to AC, especially design for the communication system.
►Software protection and hardware protection, high reliability
►Perfect protection: input polarity reverse, input over/under voltage, over current, short circuit, over heat, also the soft start function.
►3 layers composite filter and magnetism shielded which and reduce the reflect noise voltage to the input port, perfect electromagnetism compatibility.
►Intelligent fan
►Support pure sensibility load(should reduce voltage)
Technical specifications:
|
Model |
Parameters |
T1KL |
T2KL |
T3KL |
||||||
|
Rated power |
VA/W |
1000VA/800W |
2000VA/1600W |
3000VA/2400W |
||||||
|
AC input |
Input system |
Single phrase & earth ground |
||||||||
|
Ranged voltage |
220VAC |
|||||||||
|
Frequency |
50Hz |
|||||||||
|
Voltage range |
115~300VAC |
|||||||||
|
Frequency range |
45~55Hz |
|||||||||
|
Voltage range of bypass |
80VAC~285VAC |
|||||||||
|
DC input |
DC nominal voltage |
24VDC/48VDC/110VDC/220VDC |
||||||||
|
24V |
Nominal current |
|
|
|
||||||
|
Voltage range |
20-29VDC |
|||||||||
|
Input low voltage/protection |
20/21VDC |
|||||||||
|
Input high voltage/protection |
29/29VDC |
|||||||||
|
48V |
Nominal current |
|
|
|
||||||
|
Voltage range |
40-58VDC |
|||||||||
|
Input low voltage/ protection |
40/42V |
|||||||||
|
Input high voltage alarm/protection |
58/58V |
|||||||||
|
110V |
Nominal current |
|
|
|
||||||
|
Voltage range |
90-130V |
|||||||||
|
Input low voltage/protection |
90/95V |
|||||||||
|
Input high voltage/protection |
130/130V |
|||||||||
|
220V |
Nominal current |
|
|
|
||||||
|
Voltage range |
180-260V |
|||||||||
|
Input low voltage/protection |
180/190V |
|||||||||
|
Input high voltage/protection |
260/260V |
|||||||||
|
AC Output |
Output system |
Single phase & earth ground |
||||||||
|
Output voltage |
220VAC±3%(inverter output) |
|||||||||
|
Output frequency |
50±5Hz(normal), 50Hz±1%(abnormal) |
|||||||||
|
Dynamic voltage transient range |
<5% |
|||||||||
|
Dynamic transient restore |
< 60ms |
|||||||||
|
Waveform |
Sine wave THD<3%(linear load), sine wave THD<8% (nonlinear load) |
|||||||||
|
Output power factor |
0.8 |
|||||||||
|
Overload capability |
105~125%≥ 60s, 126~150%≥30s, the recover point is 90% |
|||||||||
|
Input current peak coefficient |
3:1 |
|||||||||
|
Transfer time |
0ms |
|||||||||
|
Panel indicator system |
LED screen + LCD indicator, show the status of inverter and operation parameter |
|||||||||
|
Communications |
RS232(turn to 485), stem node |
|||||||||
|
Alarm function |
AC/DC input under abnormal, overload condition and inverter problems |
|||||||||
|
Protection function |
AC input or output above or below the range of voltage Overload, over temperature and short circuit protection |
|||||||||
|
Conduction |
Satisfy YD/T983 |
|||||||||
|
Radiation |
Satisfy YD/T983 |
|||||||||
|
Noise immunity |
Satisfy YD/T983 |
|||||||||
|
Insulating resistance |
> 2MΩ(500VDC) |
|||||||||
|
Insulating strength |
2121VDC(AC input, output to ground, DC input to AC output, without flashover in one minute) |
|||||||||
|
Cooling system |
Wind cooling |
|||||||||
|
Frequency |
<55dB( |
|||||||||
|
Working environment |
Temperature |
|
||||||||
|
Humidity |
0~95%, no condensation |
|||||||||
|
Altitude |
≤ |
|||||||||
|
Storage environment |
Inverter temperature |
|
||||||||
|
Humidity |
0~95%, no condensation |
|||||||||
|
Dimensions(W×D×H)(mm) |
438×380×83 |
|||||||||
|
