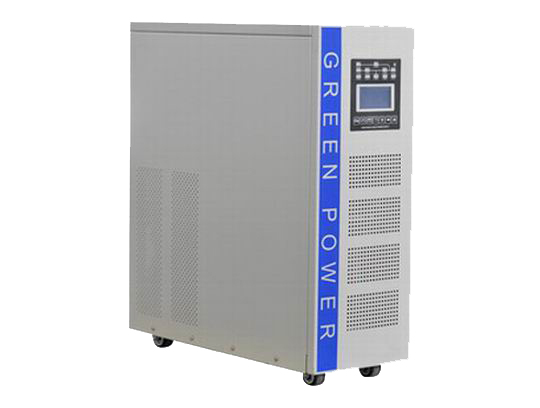

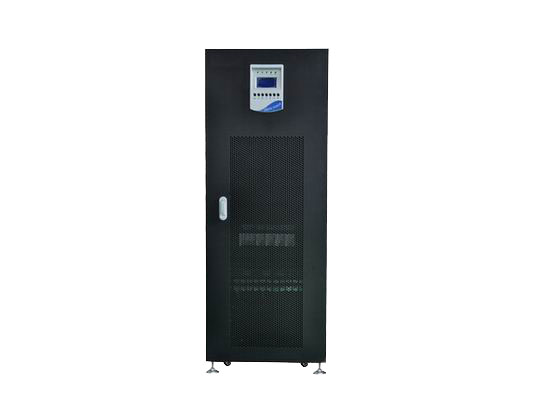

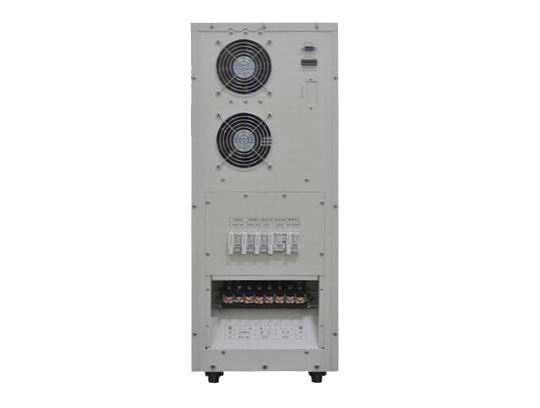

L Series 1-1 Phase Low Frequency Online UPS

L Series 1-1 Phase Low Frequency Online UPS Product DetailsProduct Details



Brief introductions:



L series 1-1 online UPS, a fully intelligent digital UPS, highly combines the latest controller and the most advanced software. It takes the 6th generation low-exhaust and big-power IGBT and static switch as power devices. This kind of UPS is a perfect production of POCASA. It adopts the digital controlling technology, of which the core is high-speed on-line programmed microprocessor.



Key features:

►Pure sine wave output, true on-line dual conversion design

►Adopt 4 layers PCB, and SMD technology

►High efficiency IGBT (insulated gate bipolar transistor) inverter technology
The 6th generation low-exhaust and big-power IGBT with excellent high speed switch feature, high voltage feature and large current feature. Drives by electric voltage, only need small control power. The 6th generation with lower saturation voltage, the inverter has high efficiency, low temperature, high reliability.

►Touch screen display, with the simple operation and Intuitive data, optional display language and logo

►Set the work mode on the display directly, UPS mode, ECO mode, EPS mode

►Intelligent detecting function
This system microprocessor can continually online detect power status, the breaker status and all the working status of the circuit.

►Excellent load feature
It is completely capable to load from 0-100% while no need to change to bypass, which makes sure the output reliable.

►Cold start
When mains failure, can directly use the battery to start the ups until the battery discharge to low voltage, when mains recover, can self start UPS.

►Generator compatible
According to the real electric circumstance, UPS can be compatible to the generator, highly improve the generator input efficiency, save the energy.

►Intelligent communication
With RS232 and RS485 standard collocation, optional SNMP and dry contact

►Perfect protection
Input/output over/low voltage protection, input surge protection, phase sequence protection, battery over charge/discharge protection, short circuit protection, over-temperature protection and so on, as well as alarm function.

►Selectable battery inspection module
Can test the single parameter and display on the LCD, battery failure will immediately alarm and inform the administrator.

►High-powered dynamic feature
Adopt kinds of feedback control such as instantaneous control mode and virtual value, not only reach the high dynamic adjustment, but also reduce the output voltage distortion.

►Optional input harmonic filter
Effectively restrain the input THD, raise UPS input power factor and reduce the input THD current.


Technical specifications:



Model
L1K
L2K
L3K
L4K
L6K
L8K
L10K
L15K
L20K
Nominal capacity(KVA)
1KVA
2KVA
3KVA
4KVA
6KVA
8KVA
10KVA
15KVA
20KVA
Working principle
Pure sine wave
Phase
1 phase +N+G
Input power factor
>0.85
Rectifier
Input voltage
220VAC; 230VAC; 240VAC
Range
±25%
Nominal input frequency
50Hz±10%; 60Hz±10%;
Output ripple
<2%
Soft startup
0~100% 5s
Charge
Charge mode
Constant current to constant voltage, with temp compensation; with auto change
Float voltage
55VDC
220VDC
Boost voltage
56.8VDC
227VDC
Temperature compensation voltage
3mV/'C(monomer)
Charge current
0.1C(automatically change according to battery capacity)
Charge power
40% of rated capacity
Battery
Battery type
Maintenance-free lead acid battery
Battery capacity
7~999AH settable (according to the capacity)
Battery number
4pcs 12V
16pcs 12V
Inverter
Phase
1 phase
Rated power
Rated capacity×0.8
Nominal voltage
220VAC; 230VAC; 240VAC
Output voltage stability
±1%(stable load); ±5%(fluctuant load)
Output frequency stability
50Hz/60Hz<±0.5%
Crest factor
>3:1
Output waveform distortion
Pure sine wave, linear load<3%; non-linear load<5%
Dynamic characteristics
Instant voltage<±5%(from 0 to100%), instant recover time<10ms
Unbalanced load voltage
<±5%
Overload protection
125% 1 minute; 150% 1s
Efficiency
>93%(full load)
Bypass
Phase
Single phase + N+G
Nominal voltage
220VAC; 230VAC; 240VAC
Transfer time
<1ms(static switch with 0s)
Protection
Input protection
Input voltage/frequency over limited protection
Output protection
Over current; short circuit; factor low protection
Battery protection
Over charge; over-discharge protection
Temperature protection
Environment over temperature protection; inverter over temperature protection
Hardware failure protection
Assistant power abnormal, breaker cut off, breaker overload, power devices over current/over voltage etc. protection
System Parameters
Working environment
Temp: 0~40ºC, relative humidity 0~95%
(1% decrease against 100 meters’ rise, altitude 4000 meters Max)
Cooling down method
Compulsive ventilation(with temperature control)
Communication interface
RS232/RS485; optional SNMP card(for internet)
Redundancy function
Tandem hot backup or parallel connection
Anti-surge capacity
10/700μS, 5KV; 8/20μS, 20KA
Protection level
IP21
Safety performance
Vin-n Vout-n 3000Vac, creepage<3.5mA, insulating resistance>2MΩ(500VDC)
Noise(dB)
45~60
Dimension(W×D×H)mm
210*452*510
220*578*540
380*900*680
430*750*1050
Weight(Kg)
35
58
65
82
105
200
245
265
300



* All specification subject to change without notice

* Customer-made specifications are acceptable
