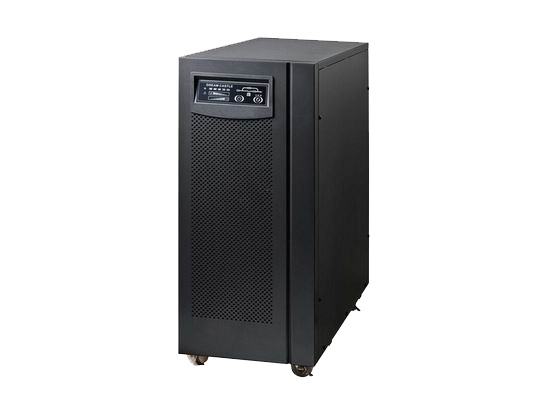

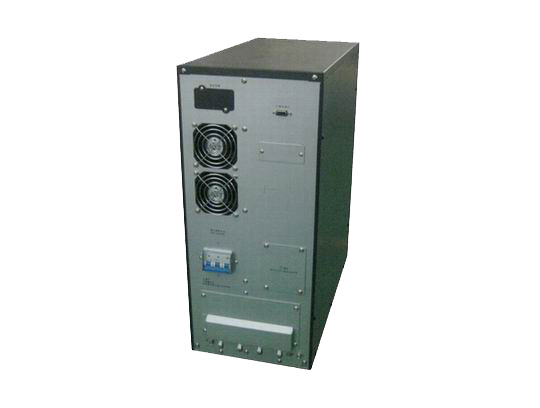

H Series 6kVA to 10kVA High Frequency Online UPS

Product Details

Key features:

►True online double conversion technology

►Wide input voltage range

►Zero transfer time

►Protection against all types of power problems

►No add-on CNTL unit required for parallel connection

►Low initial investment and flexible for future expansion

►Highest reliability and maximum performance for power sharing and redundancy

►Equipped with maintenance bypass switch

The best charger is designed to recharge low battery as quickly as possible with out damaging batteries in 2 amp up to 8 amp and 192Vdc. Allowing 90% recharge in as little as 10 hours after a total drain.

►Audible and visual over-load indicator
The incorporated LED over load indicator prevents ups overloads and premature failure of the UPS.

►N+1 parallel redundancy
Allows a 6kVA to grow up to 18kVA or 12kVA with 6kVA redundancy, allowing user to add capacity as needed and lower investment.

►Simplified board separation
Dependent on the units all operation are separated into 5 PCBs allowing quick respond to damages and provides our valued dealers with simplified inventory and faster service to the end users.

►Dynamic bypass
Automatic dynamic bypass and manual bypass provide a loop to repair UPS with out having to disconnect loads ideal for non stop computing for critical applications.

►SNMP slot
Provides remote monitoring and control of UPS where a PC is not present or where this function is needed to be separated.

►AS400 dry contact card
Optional card to communicate in AS400 protocols

►Sine-wave output
True sine-wave output with a 3% THD on batteries. This feature provides dependable and compatible power for your most critical applications.

►True double conversion technology with zero transfer time
This advance design provides the closest you can get to pure constant power in the industry.

Technical specifications:

Model		H6kS/H6kL	H10kS/H10kL
Rated power	VA/W	6kVA/4800W	10kVA/8000W
Input	Nominal voltage	220Vac
	Voltage range	176~276Vac
	Frequency range	46~54Hz
	Power efficiency	0.98
	Connection	Hardwired
Output	Voltage	220Vac±1%
	Frequency	50Hz±0.1%(battery mode)
	Waveform	Pure sine wave
	Power factor	0.8
	Voltage distortion	2% under linear load
	Overload capability	105%~130% for 10 min., ³130% for 1 min.
	Current crest ratio	3:1 Max.
	Connection	Hardwired
Battery	Type	Sealed, maintenance free, lead-acid
	Quantity	16 pieces
	Back-up time(full load)	16.8 min	10 min
	Recharge time	8 hrs to 90% of capacity after full load discharge
Transfer time		0ms
Maintenance bypass switch		Yes
LED indicators	Status	Load level/battery level, battery, utility power, inverter, bypass, overload, fault
Audible alarm	Bypass	Alarm beeps every two minutes
	Battery discharge	Alarm beeps every four seconds, every second if battery low
	Overload	Alarm beeps two for every second
	Fault	Alarm beeps continuously
Acoustic noise	At 1 meter distance	£55 dB
Communication	DB-9 port	RS232 serial interface
	Intelligent slot	Options: WebPower, AS400 or WinPower CMC
Parallel port		Up to three units in parallel for power redundancy and load sharing
Environmental	Operating temperature	0~40°C
	Operating humidity	20%~90% non-condensing
Weight	Net(Kg)	73/23	74/24
Dimension	WxDxH(mm)	645352845
