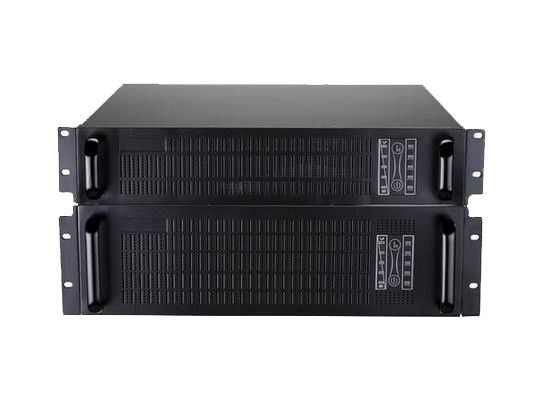

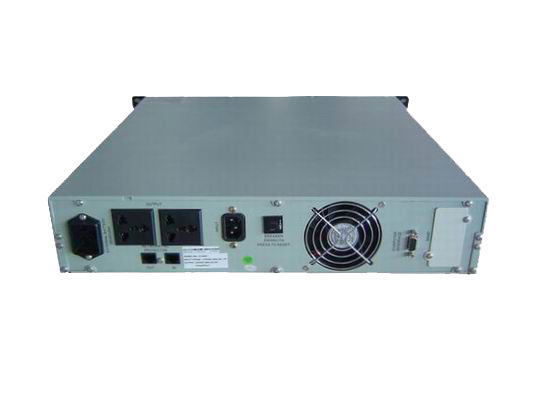

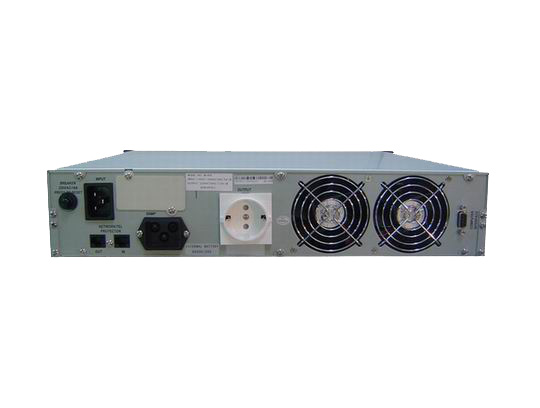

H Series 1kVA to 6kVA Rack Mount High Frequency Online UPS
Product Details
Key features:
* DSP digital control technology
a ccurate high speed data processing to improve UPS functions and reliable quality.
* Wide range technology
wide input frequency range from 40Hz to 70Hz
* Heavy load power factor
default 0.8, settable 0.9
* 0 second transfering time
* 50Hz /60Hz automatic identification
* Support ECO running
* Automatic restart function
battery discharge until shutdown, UPS restarts when AC recover.
* Long backup time UPS model with more stronger charging function
Technical specifications:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
UPS Model |
1kR |
|
1kRL |
|
2kR |
|
2kRL |
|
3kR |
3kRL |
6kR |
6kRL |
||
|
|
Rated power VA/W |
800W/900W |
|
1600W/1800W |
|
2400W/2700W |
6kVA/4.8kW |
||||||||
|
|
Input |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normal voltage |
|
|
|
|
|
110Vac~300Vac |
|
120Vac~275Vac |
||||||
|
|
Frequency range |
|
|
|
|
|
|
40~70Hz |
|
|
|
|
46~64Hz,50/60Hz self detect |
||
|
|
Power factor |
|
|
|
|
|
|
|
|
≥0.99 |
|
|
|
|
|
|
|
Output |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Voltage |
|
200/208/220/230/240Vacx(1±1%)Vac |
output can be setted |
220x(1±1%)Vac |
||||||||||
|
|
Frequency |
|
|
the same as the utility frequency (line mode); (50/60±0.1)Hz (battery mode) |
|
||||||||||
|
|
Power factor |
|
|
|
|
|
|
0.8(default); 0.9(adjustable) |
|
|
|
||||
|
|
Output waveform |
|
|
|
|
|
|
|
pure sine wave |
|
|
|
|
||
|
|
Current crest ratio |
|
|
|
|
|
|
|
3:1 |
|
|
|
|
|
|
|
|
Harmonic distortion(THD) |
|
|
|
|
|
|
linear load≤3% Nonlinear load≤6% |
|
|
|
||||
|
|
Transfer time |
|
|
|
|
|
|
0ms (turn to bypass: 4ms) |
|
|
|
||||
|
|
Efficiency |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
AC mode |
|
87% |
|
|
90% |
|
90% |
|
89% |
|
|
|||
|
|
Battery mode |
|
83% |
|
|
87% |
|
89% |
|
85% |
|
|
|||
|
|
Battery |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Type |
|
|
|
|
|
|
maintenance free lead-acid battery |
|
|
|
||||
|
|
Rated voltage |
24V |
|
36V |
|
48V |
|
72V |
|
72V |
|
96V |
192V |
|
|
|
|
Charging voltage |
27.4V |
|
41.0V |
|
54.7V |
|
82.1V |
|
82.1V |
|
109.4V |
220V |
|
|
|
|
Charging current |
1A |
|
12/4A |
|
1A |
|
12A |
|
1A |
|
12A |
2.1A |
|
4.2A |
|
|
Display |
LCD+LED display input voltage, output voltage, dc voltage, battery capacity, load level, alarming, etc. |
|||||||||||||
|
|
Protection |
over temperature, over load, battery protection, over voltage, output short circuit protection |
|||||||||||||
|
|
Communication port |
|
|
|
RS232(standard); USB, EPO, SNMP card, AS400 card optional |
|
|||||||||
|
|
Connect generator |
|
|
|
|
|
|
|
|
Yes |
|
|
|
|
|
|
|
Operating environment |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature |
|
|
|
|
|
|
|
0°C-40°C |
|
|
|
|
||
|
|
Humidity |
|
|
|
|
|
|
0~90% (non-condensate) |
|
|
|
|
|||
|
|
Noise |
|
|
|
|
|
|
<50dB |
|
|
|
|
<60dB |
|
|
|
|
Altitude |
|
|
|
|
|
|
|
|
<1500m |
|
|
|
|
|
|
|
Net weight |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Dimensions |
|
|
|
|
|
482*400*88mm |
|
|
|
|
482*600*130mm |
|||
|
|
Executive standard |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Safety standard |
|
|
|
|
|
|
IEC/EN62040-1, IEC/EN60950-1 |
|
|
|
||||
|
|
EMC |
IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 |
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* We may continue to improve this model. If there is any change of technical parameters, there will be no extra notification.
* Battery is consumables, the warranty is 1 year.
* "L"means long time model.
Battery pack specification & backup time tables
Battery type: 12V/7.2AH
|
Applicable |
19" Battery moduel specification |
|
|
|
Backup time/min |
|
|
|||||
|
|
model |
height |
quantity |
|
weight |
1pcs |
2pcs |
3pcs |
4pcs |
5pcs |
6pcs |
|
|
1kRL |
B7032 |
2 |
3x2 banks |
|
22.5 |
- |
25‘ |
48‘ |
67‘ |
93‘ |
112‘ |
|
|
2kR |
B7042 |
2 |
4x2 banks |
|
27.8 |
9‘ |
- |
- |
- |
- |
- |
|
|
2kRL |
B7061 |
2 |
6x1 bank |
|
23.8 |
- |
- |
46‘ |
66‘ |
89‘ |
115‘ |
|
|
3kR |
B7061 |
2 |
6x1 bank |
|
23.8 |
5‘ |
- |
- |
- |
- |
- |
|
|
|
3kRL |
B7081 |
2 |
8x1 banks |
|
27.8 |
- |
- |
21‘ |
30‘ |
52‘ |
63‘ |
|
|
6kR |
B7161 |
3 |
16x1 bank |
|
60.2 |
6’ |
- |
- |
- |
- |
- |
|
|
6kRL |
B7161 |
3 |
16x1 bank |
|
60.2 |
- |
20‘ |
34‘ |
50‘ |
68‘ |
83‘ |
Battery type : 1245W
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
Applicable |
19" Battery module specification |
|
|
|
Backup time/min |
|
|
||||||||||
|
|
|
model |
height |
quantity |
|
weight |
1pcs |
2pcs |
3pcs |
4pcs |
5pcs |
6pcs |
||||||
|
|
1kRL |
B7032 |
2 |
3x2 banks |
|
22.9 |
- |
40‘ |
69‘ |
98‘ |
112‘ |
139‘ |
||||||
|
|
2kR |
B9042 |
2 |
4x2 banks |
28.5 |
14‘ |
- |
- |
- |
- |
- |
|||||||
|
|
2kRL |
B9061 |
2 |
6x1 bank |
24.5 |
- |
- |
57‘ |
87‘ |
114‘ |
142‘ |
|||||||
|
|
3kR |
B9061 |
2 |
6x1 bank |
24.5 |
7‘ |
- |
- |
- |
- |
- |
|||||||
|
|
3kRL |
B9081 |
2 |
8x1 bank |
28.5 |
- |
- |
38‘ |
47‘ |
68‘ |
85‘ |
|||||||
|
|
6kR |
B9161 |
3 |
20x1 bank |
62.2 |
10’ |
- |
- |
- |
- |
- |
|||||||
|
|
6kRL |
B9161 |
3 |
20x1 bank |
62.2 |
- |
25‘ |
43‘ |
63‘ |
78‘ |
96‘ |
|||||||
Notes:
1. 1U=4.45cm
2. Backup time is counted in case of full load
3. 1kR is built in 1 set battery(2 pcs), 2kR is built in 1 set battery(4 pcs), backup time is 5 mins (full load)
4. pcs means the quantity of battery module
5. Backup time is only for reference
|
