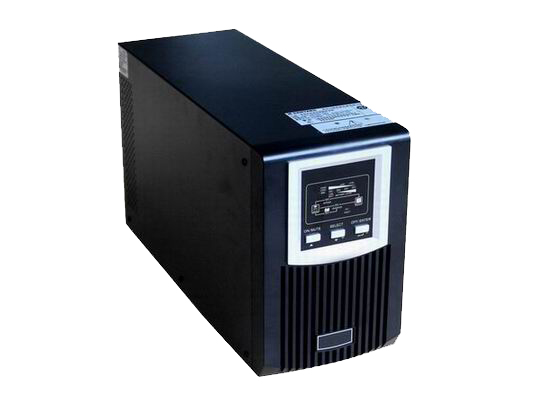

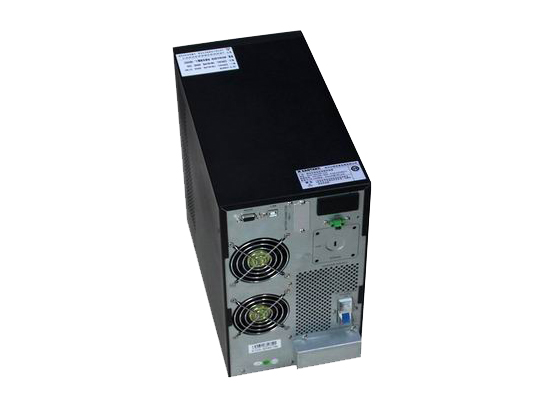

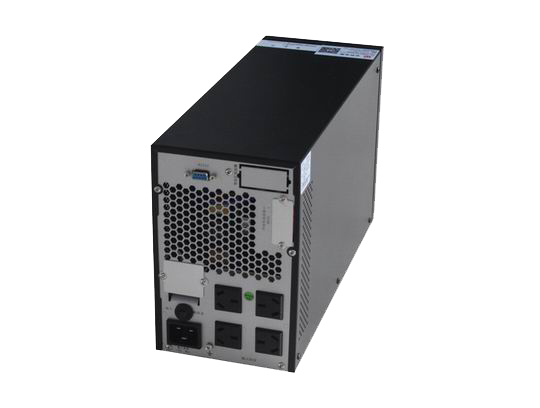

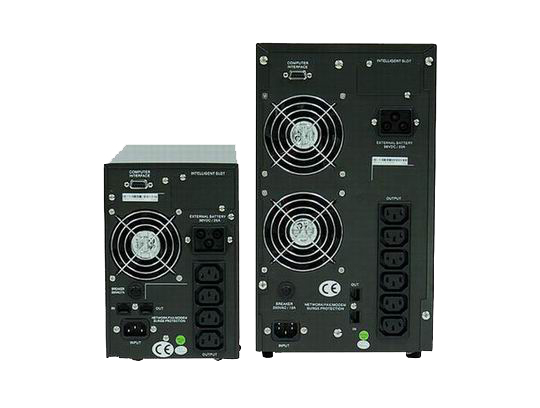

H Series 1kVA to 3kVA High Frequency Online UPS
Product Details
* DSP digital control technology
accurate high speed data processing to improve UPS functions and reliable quality.
* Wide range technology
wide input frequency range from 40Hz to 70Hz
* Heavy load power factor: default 0.8, settable 0.9
* 0 second transferring time
* 50Hz/60Hz automatic identification
* Support ECO running
* Automatic restart function: Battery discharge until shutdown, UPS restarts when AC recover.
* Long backup time UPS model with stronger charging function
* Compatible with generator
* Good looking with LCD display, easy to operate
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
UPS Model |
1kS |
|
1kL |
|
2kS |
|
2kL |
|
3kS |
|
3kL |
|
|
Rated capacity |
|
800W/900W |
|
1600W/1800W |
|
2400W/2700W |
|||||
|
|
Input |
|
|
|
|
|
|
|
|
|
|
|
|
|
Normal voltage |
|
|
|
|
110Vac~300Vac |
|
|
|
|
|
|
|
|
Frequency range |
|
|
|
|
40~70Hz |
|
|
|
|
|
|
|
|
Power factor |
|
|
|
|
≥0.99 |
|
|
|
|
|
|
|
|
Output |
|
|
|
|
|
|
|
|
|
|
|
|
|
Voltage |
|
200/208/220/230/240Vac*(1±1%)Vac (output can be adjustable) |
|
|
|||||||
|
|
Frequency |
|
AC mode in sync with AC(45-55)Hz, battery mode(50/60±0.1)Hz |
|
|
|||||||
|
|
Power factor |
|
|
|
0.8(default); 0.9(can be setted) |
|
|
|
||||
|
|
Output waveform |
|
|
|
|
pure sine wave |
|
|
|
|
|
|
|
|
Current crest ratio |
|
|
|
3:1 |
|
|
|
|
|
|
|
|
|
Harmonic |
|
|
|
linear load≤3% non-linear load≤6% |
|
|
|
||||
|
|
Transfer time |
|
|
zero second transfer(transfer bypass mode 4ms) |
|
|
||||||
|
|
Overload capacity |
105%~110%: battery mode 10 mins shutdown, AC mode 10 mins transfer to bypass mode; |
||||||||||
|
|
|
110%~130%: battery mode 1 min shutdown, AC mode 1 min transfer to bypass mode; |
||||||||||
|
|
|
>130%: battery mode 3 seconds shutdown, AC mode 1 second transfer to bypass mode; |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Bypass voltage |
|
|
set 230Vac~264Vac (default 264Vac) |
|
|
|
|||||
|
|
Efficiency |
|
|
|
|
|
|
|
|
|
|
|
|
|
AC mode |
|
88% |
|
|
89% |
|
|
|
90% |
|
|
|
|
Battery mode |
|
83% |
|
|
87% |
|
|
|
88% |
|
|
|
|
Battery |
|
|
|
|
|
|
|
|
|
|
|
|
|
Type |
|
|
|
|
maintenance free lead-acid battery |
|
|
|
|||
|
|
Rated voltage |
24V |
|
36V |
|
48V |
|
72V |
|
72V |
|
96V |
|
|
Charging voltage |
27.4V |
|
41.0V |
|
54.7V |
|
82.1V |
|
82.1V |
|
109.4V |
|
|
Charging current |
1A |
|
12A or 4A |
|
1A |
|
12A |
|
1A |
|
12A |
|
|
Display |
LCD+LED input voltage, output voltage, battery voltage, battery capacity, load lever, alarm, various |
||||||||||
|
|
Protection |
overtemperature protection, overload protection, battery protection, overvoltage protection, output |
||||||||||
|
|
Communication |
|
RS232(standard); USB, EPO, SNMP card, AS400 card optional |
|
|
|||||||
|
|
ECO(economic |
|
|
|
support(set through the panel) |
|
|
|
||||
|
|
Connect generator |
|
|
|
|
Yes |
|
|
|
|
|
|
|
|
Operating environment |
|
|
|
|
|
|
|
|
|
|
|
|
|
Temperature |
|
|
|
|
0°C〜40°C |
|
|
|
|
|
|
|
|
Humidity |
|
|
|
|
0~90% (non-condensate) |
|
|
|
|||
|
|
Noise |
|
|
|
|
<50dB |
|
|
|
|
|
|
|
|
Altitude |
|
|
|
|
<1500m |
|
|
|
|
|
|
|
|
Net weight/Kg |
9.1 |
|
5.3 |
|
19.5 |
|
9.5 |
|
24.5 |
|
9.7 |
|
|
Dimensions |
356*230*328 mm |
|
|
|
484*320*456mm |
|
|
|
|||
|
|
Executive standard |
|
|
|
|
|
|
|
|
|
|
|
|
|
Safety standard |
|
|
|
IEC/EN62040 -1, IEC/EN60950 -1 |
|
|
|
||||
|
|
EMC |
IEC/EN62040 -2, IEC61000 -4-2, IEC61000 -4-3, IEC61000-4-4, IEC61000-4-5, IEC61000 -4-6, IEC61000 -4- |
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
*"L" means long standard backup time UPS
|
