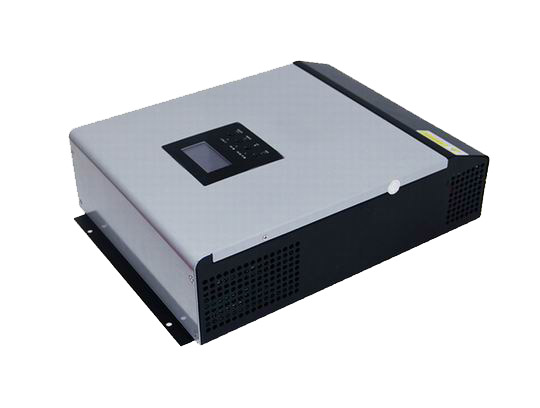

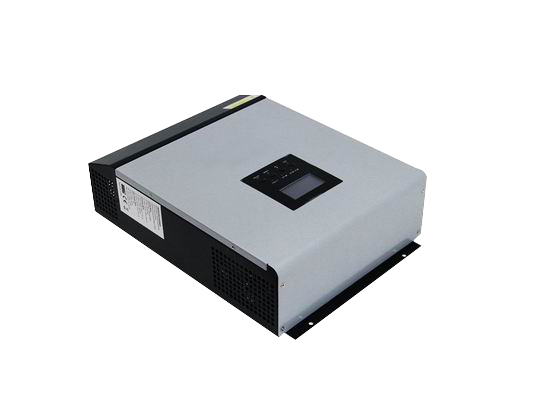

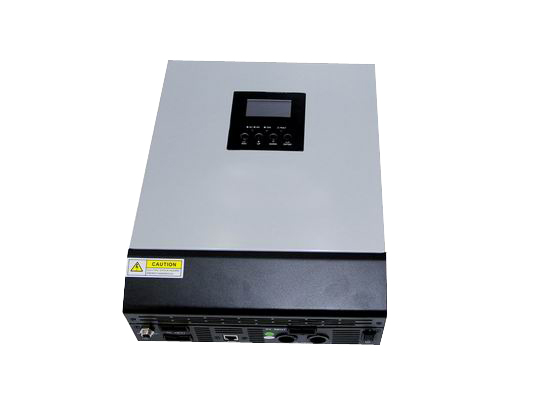

MHS/PHS Series 1kVA to 5kVA Hybrid Solar Inverter
Product DetailsKey features:
1. Pure sine wave inverter
2. Built-in MPPT or PWM solar charge controller
3. Selectable input voltage range for home appliances and personal computers
4. Selectable charging current based on applications
5. Configurable AC/Solar input priority via LCD setting
6. Compatible to mains voltage or generator power
7. Auto restart while AC is recovering
8. Overload and short circuit protection
9. Smart battery charger design for optimized battery performance
10. Cold start function
11. Parallel operation with up to 6 units only available for 4KVA/5KVA
12. Optional Remote Control Panel available
Technical specifications:
|
Rated power
|
1000VA/800W
|
1000VA/800W
|
2000VA/1600W
|
3000VA/2400W
|
3000VA/2400W
|
4000VA/3200W
|
5000VA/4000W
|
||||||
|
Input
|
|||||||||||||
|
Voltage
|
120VAC or 230VAC
|
230VAC
|
|||||||||||
|
Selectable voltage range
|
95-140VAC or 170-280VAC(for personal computers)
65-140VAC or 90-280VAC(for home appliances) |
170-280VAC(for personal computers)
90-280VAC(for home appliances) |
|||||||||||
|
Frequency range
|
50Hz/60Hz(auto sensing)
|
||||||||||||
|
Output
|
|||||||||||||
|
AC voltage regulation (battery mode)
|
110/120VAC+/-5%(user selectable) or 230VAC±5%
|
230VAC±5%
|
|||||||||||
|
Surge Power
|
2000VA
|
4000VA
|
6000VA
|
8000VA
|
10000VA
|
||||||||
|
Efficiency (Peak)
|
90%-93%
|
93%
|
|||||||||||
|
Transfer time
|
10ms(for personal computers); 20ms(for home appliances)
|
||||||||||||
|
Waveform
|
Pure sine wave
|
||||||||||||
|
Battery&AC charger
|
|||||||||||||
|
Battery voltage
|
DC24V
|
DC48V
|
DC24V
|
DC48V
|
|||||||||
|
Floating charge voltage
|
DC27V
|
DC54V
|
DC27V
|
DC54V
|
|||||||||
|
Overcharge protection
|
DC31V
|
DC62V
|
DC31V
|
DC62V
|
DC60V
|
||||||||
|
Solar charger&AC charger
|
|||||||||||||
|
Maximum PV array power
|
600W
|
900W
|
600W
|
900W
|
3000W
|
||||||||
|
MPPT range @operating voltage
|
DC30V~ 66V
|
DC60V~ 88V
|
DC30V~ 66V
|
DC60V~ 88V
|
DC60V ~115V
|
||||||||
|
Maximum PV array open circuit voltage
|
DC75V
|
DC102V
|
DC75V
|
DC102VC
|
DC145V
|
||||||||
|
Maximum solar charge current
|
25A
|
20A
|
25A
|
20A
|
60A
|
||||||||
|
Maximum AC charge current
|
20A
|
15A
|
30A
|
15A
|
30 A
|
||||||||
|
Maximum charge current
|
25A
|
20A
|
30A
|
20A
|
60A
|
||||||||
|
AC charger and solar charger can’t work at the same time
|
|||||||||||||
|
Maximum efficiency
|
98%
|
||||||||||||
|
Standby power consumption
|
2W
|
||||||||||||
|
Physical
|
|||||||||||||
|
Dimension,DxWxH (mm)
|
128x272x355
|
||||||||||||
|
Net weight (Kg)
|
7.4
|
7.6
|
8.0
|
12.5
|
13.5
|
||||||||
|
Operating environment
|
|||||||||||||
|
Humidity
|
5% to 95% relative humidity(non-condensing)
|
||||||||||||
|
Operating temperature
|
0°C-55°C
|
||||||||||||
|
Storage temperature
|
-15°C-60°C
|
||||||||||||
*Product specifications are subject to change without prior notice.
|
Rated power
|
1000VA/800W
|
2000VA/1600W
|
3000VA/2400W
|
4000VA/3200W
|
5000VA/4000W
|
|
Input
|
|||||
|
Voltage
|
230VAC
|
||||
|
Selectable voltage range
|
170-280VAC(for personal computers)
90-280VAC(for home appliances) |
||||
|
Frequency range
|
50Hz/60Hz(auto sensing)
|
||||
|
Output
|
|||||
|
AC voltage regulation (battery mode)
|
230VAC±5%
|
||||
|
Surge Power
|
2000VA
|
4000VA
|
6000VA
|
8000VA
|
10000VA
|
|
Efficiency (Peak)
|
90%-93%
|
93%
|
|||
|
Transfer time
|
10ms(for personal computers); 20ms(for home appliances)
|
||||
|
Waveform
|
Pure sine wave
|
||||
|
Battery&AC charger
|
|||||
|
Battery voltage
|
DC12V
|
DC24V
|
DC48V
|
||
|
Floating charge voltage
|
DC13.5V
|
DC27V
|
DC54V
|
||
|
Overcharge protection
|
DC15.5V
|
DC31V
|
DC60V
|
||
|
Solar charger&AC charger
|
|||||
|
Maximum PV array open circuit voltage
|
DC40V
|
DC60V
|
DC105V
|
||
|
Standby power consumption
|
1W
|
2W
|
|||
|
Maximum solar charge current
|
50A
|
||||
|
Maximum AC charge current
|
10A or 20A
|
20A or 30A
|
50A or 60A
|
||
|
Physical
|
|||||
|
Dimension,DxWxH (mm)
|
95X240X316
|
100x272x355
|
120x295x468
|
||
|
Net weight (Kg)
|
5.0
|
6.4
|
6.9
|
9.8
|
|
|
Operating environment
|
|||||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
||||
|
Operating temperature
|
0°C-55°C
|
||||
|
Storage temperature
|
-15°C-60°C
|
||||
*Typical transfer time for parallel operation is 30ms.
*Product specifications are subject to change without prior notice.
*Product specifications are subject to change without prior notice.
|
